Screens
Screens are used for screening processes, granulating, and separating materials in sand mines. Screens, are made in different length and width and they usually have one to four stores. As well, according to customers’ orders, even in other industries, screens will have more stores.

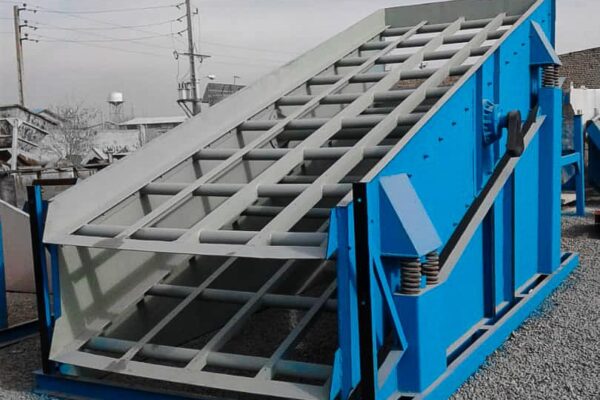

Vibrating Screen:
Having special design, vibrating screens vibration pattern spreads to all the surface of the nets, but it will not affect the chassis. Repair and maintenance for vibrating screen is very easy and they just need daily greasing.
To change the exit nozzle of the screen just change the net. To improve stability of the screen in connecting plates are used in both sides.
| Model | Body Sheet | Bearing | Electromotor | Shaft | Total Mass
(kg) |
Production Rate
(t/h) |
| 5*1.5 | 8 mm | Two stores: 22318
Three stores: 22318 |
KW 11 | 110 | 6300 | 150-200 |
| 6*1.5 | 8 mm | Two stores: 22320
Three stores: 22320 |
KW 11 | 120 | 6500 | 180-220 |
| 6*2 | 10 mm | Two stores: 22326
Three stores: 22326 |
KW 11 | 150 | 7000 | 200-250 |
Significant Features:
- Higher resistant and stable structure.
- High quality integrated frames used in chassis.
- Stainless Steel is used in shafts.
- QC approved parts and lubricating system.
- Double bearing system to increase resistance.
- Layers made from iron beams to avoid breaking (designed in Germany Boehringer).
- Standard slope, suitable for the regulated screening and granulating process.
- Lubrication system as Gear Oil & Greasy
