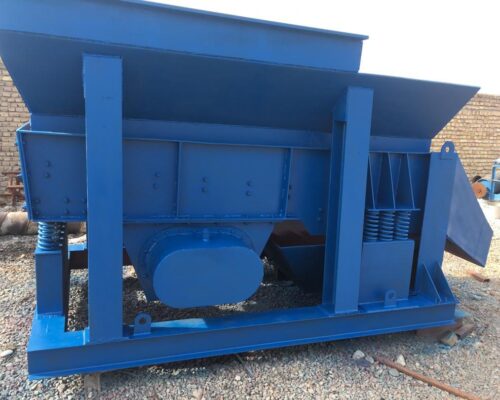

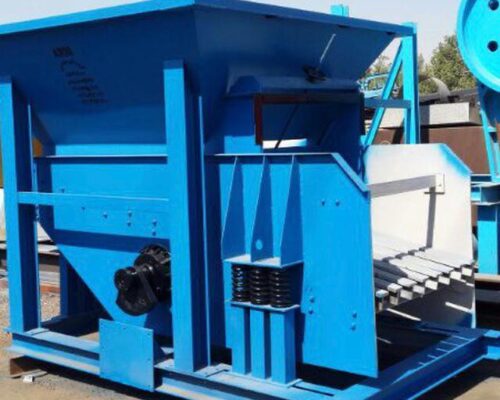

Grizzly Feeder
This type of feeder is operated for feeding material Mountain for systematic designed with adjustable outlet valve to control the final product dimensions and also has a system of belts in the output in order to increase capacity and prevent fine material seeds of the jaw, which can have two cross-sectional area on two floors, which allows better isolation products provide in both uniaxial and biaxial in different sizes are produced to move it linearly to the top face done.
| Dimension
(cm) |
Production Rate
(t/h) |
Total Mass
(kg) |
ElectromotorPower (kw) | Model |
| 200*80 | 80 | 2500 | 5.5 | VF-80 |
| 200*100 | 100 | 3500 | 7.5 | VF-100 |
| 250*150 | 120 | 4200 | 11 | VF-120 |
| 300*140 | 140 | 6000 | 11 | VF-140 |
| 300*100 | 150-200 | 3500 | 7.5 | FG-100 |
| 300*120 | 220-300 | 4000 | 7.5 | FG-120 |
| 400*140 | 300-400 | 6000 | 11 | FG-140 |
Features Grizzly Feeder:
- Adjustment vibration range.
- Strong structure and high resistance.
- Shafts made of alloys of stainless steel.
- Lubrication system as Gear Oil & Grease.
- Transmission system for device vibration.
- Using anti-erosion sheets.
